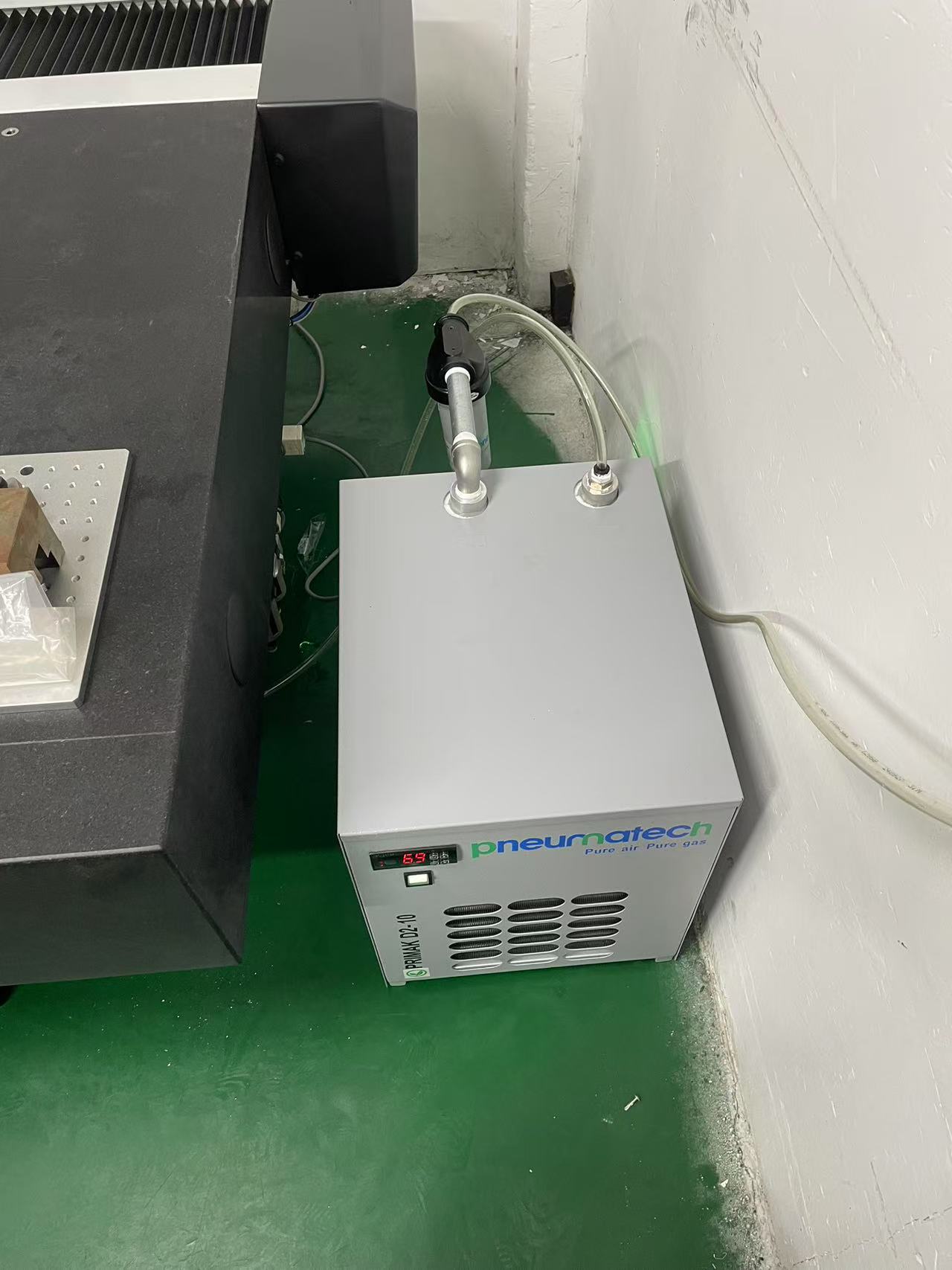

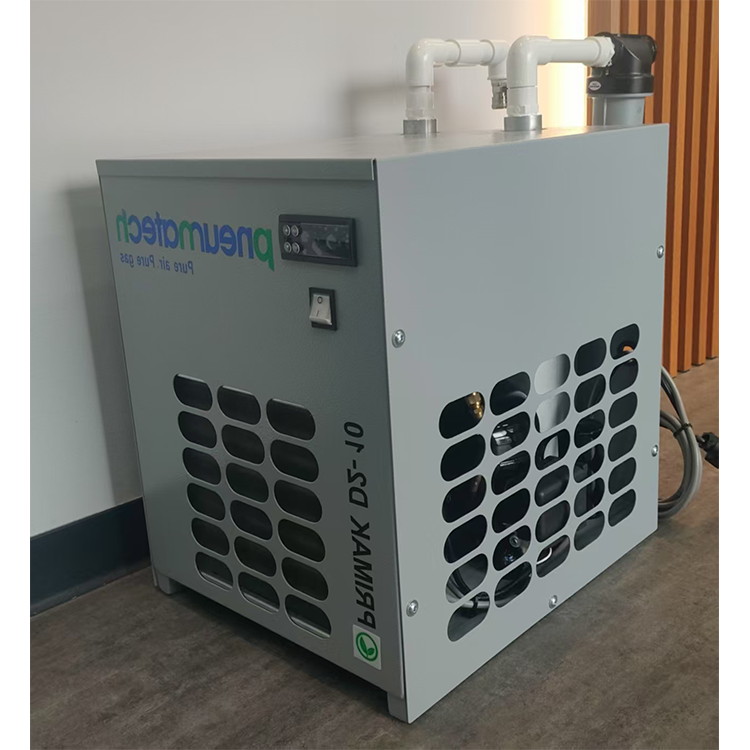

Refrigerated Air Dryer D2

Designed for Harsh Operating Conditions

• Optimised design of heat exchanger and condenser, with maximum inlet air temperature increased from 55°C to 60°C
• New exterior design with optimised airflow path to prevent shutdowns caused by improper installation
• Equipped with a hot gas bypass valve, enhancing the dryer’s adaptability under varying loads

Energy Efficient and Environmentally Friendly

• Newly designed condenser for improved heat exchange efficiency
• New controller with improved control logic, reducing fan energy consumption under low-load conditions
• Uses environmentally friendly refrigerants R134a and R410A

Safe and Reliable

• Full series uses industrial-grade refrigeration compressors from internationally recognised brands
• 3D optimised refrigeration piping design reduces solder joints and minimises the risk of refrigerant leakage
• Standardised production processes with rigorous factory testing

Simple and Easy to Use

• Integrated design of pre-cooler, evaporator, and separator for a compact structure
• Improved base with folded edges and added fixing bolt holes for easier installation

Standard Technical Parameters

• Pressure Dew Point: 3~10°C
• Maximum Inlet Temperature: 60°C
• Working Pressure: 5–13 bar
• Maximum Ambient Temperature: 45°C
• Power Supply: 220V / 1PH / 50Hz
• Type: Air-cooled
