Integrated video microscope

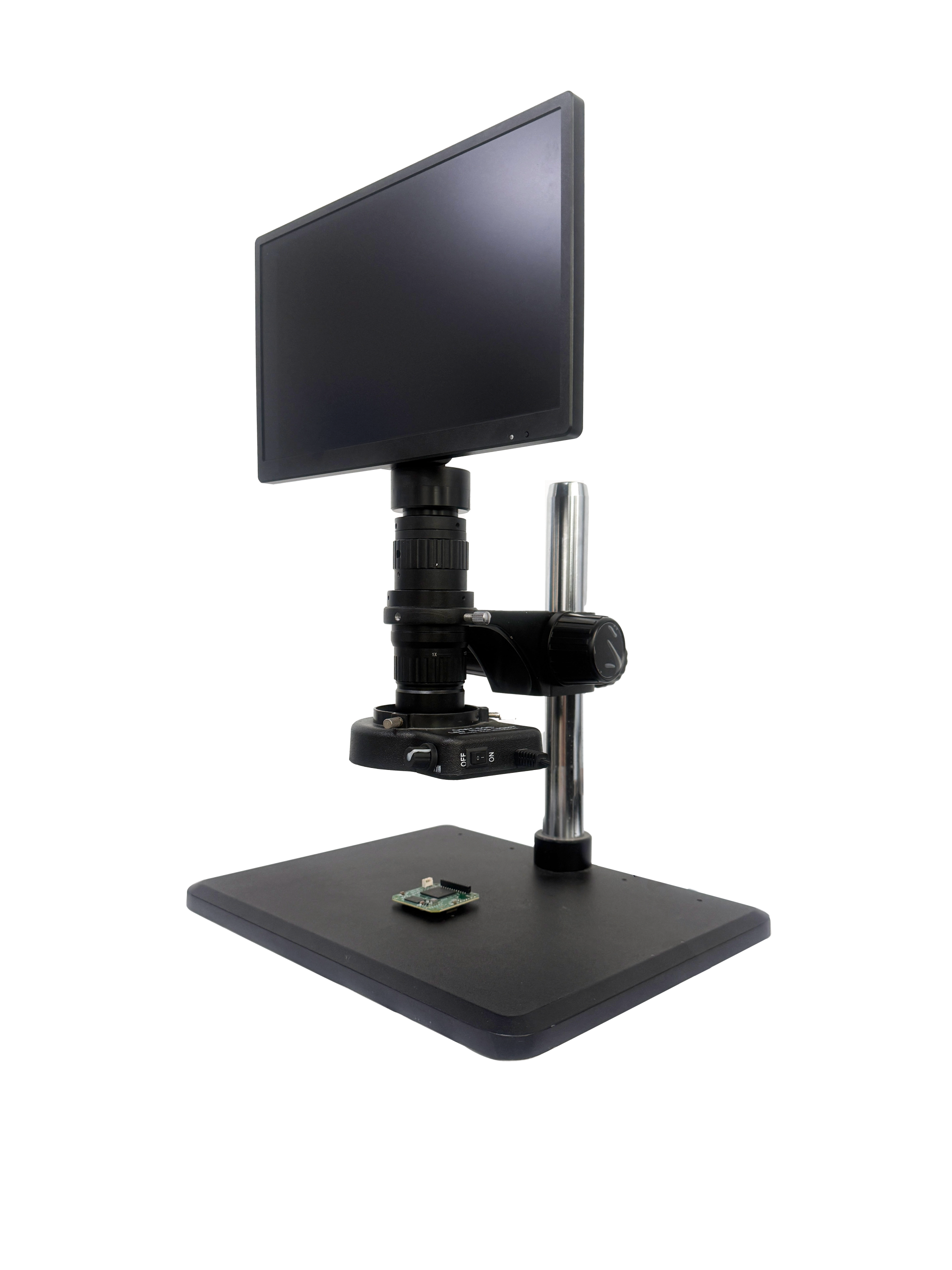

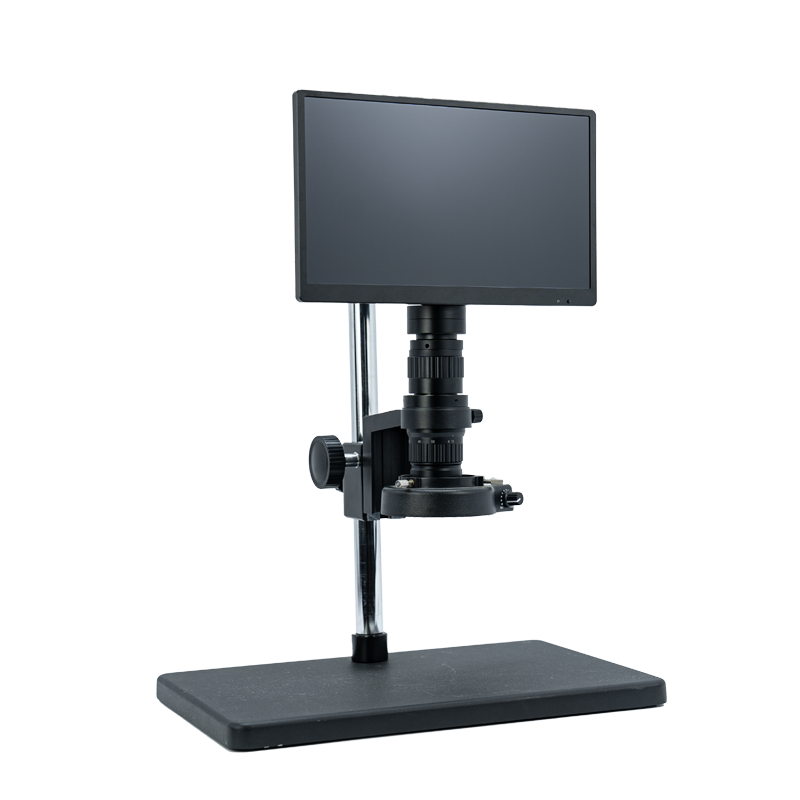

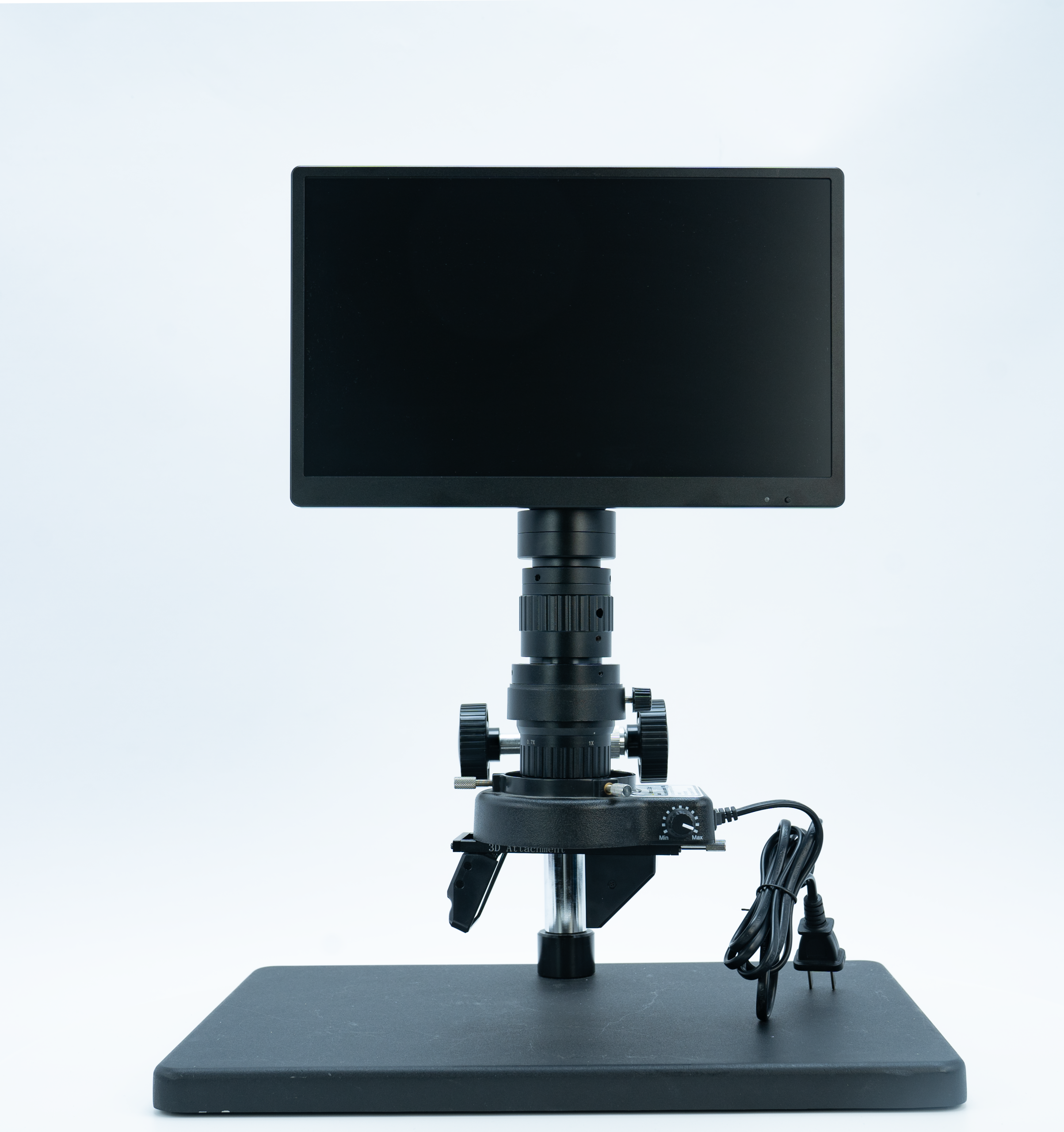

All-in-One Video Microscope HD Video Microscope Video Measuring Microscope
The WH-9218S all-in-one microscope is easy to use, operated by a mouse, stored in SD, and contains multiple measurement tools. It has automatic edge searching and graphic capturing functions, and can overlay various reference graphics for comparative detection. Simultaneously capable of saving graphics and measurement data, which can be exported to a computer.
Applicable scenarios: electronic product testing, plastic product testing, hardware device measurement, and micro product measurement ….
Product Features:
- Embedded system using FPGA+ARM architecture. Run the LINUX3.10 operating system.
- Dual core Cortex-A9 processor with a clock speed of 1GHz and up to 1Gb DDR3 memory.
- Adopting a 1/3-inch backlit CMOS sensor.
- Up to 2 million high-speed image acquisition with a resolution of 1920×1080@60fps.
- USB interface, can connect wireless mouse or keyboard.
- The HDMI high-definition interface ensures clear and bright images.
- A brand new operating interface, more intuitive and convenient
- Adopting a popular flat button design, it is beautiful and convenient.
- The advanced highlight suppression function better solves the problem of strong reflection.
- Simplified Chinese, Traditional Chinese, and English can be freely selected.
- 11.6-inch high-definition display screen with a resolution of 1920 * 1080P.
- Integrated power supply, complete structure, stable and reliable.
Integrated Video Microscope – Overview
The Integrated Video Microscope (also known as All-in-One Video Microscope) is a compact, multifunctional microscopic inspection device that integrates optical microscope, high‑definition digital camera, LCD display, image processing system, and measurement software into a single, unified unit. Unlike traditional optical microscopes that require eyepiece observation and external cameras, this all‑in‑one system delivers real‑time HD live imaging directly on its built‑in screen—without the need for a PC.
The system features a continuous zoom optical lens (typically 0.6×–5.0× or 0.7×–4.5×), a high‑resolution CMOS sensor (1080P or 4K) with 60fps high‑frame‑rate imaging for lag‑free observation, built‑in measurement software for on‑screen dimensional analysis, and programmable LED ring lighting for optimal illumination. With photo/video capture, image storage, real‑time measurement, image comparison, and data export capabilities—all integrated into one device—it eliminates the complexity of multi‑component setups and dramatically improves inspection efficiency.
This instrument is an essential tool for electronic manufacturing, precision machining, quality control, R&D laboratories, medical device inspection, and educational training—offering a plug‑and‑play, space‑saving, and cost‑effective solution for modern microscopic inspection needs
Specification parameters of integrated video microscope
| Product Model | WH-9218S |
| Product Model | 1920x1080x24Bit |
| Image Capture Mode | Manual / External trigger |
| Resolution | 60 frames per second @ 1920×1080 |
| Storage Mode | USB flash drive storage, network storage |
| Optical dimensions | 1/3” |
| Crosshair Function | Overlay on / off |
| Pixel Size | 2.75×2.75um |
| Lens Mount | C-mount |
| Color Adjustment | R, G, B independently adjustable |
| Power Supply | 12V |
| White Balance Adjustment | Auto white balance / One-touch white balance |
| Overall Dimensions | 280x180x67mm |
| Display Size | 11.6 inch |
| 280x180x16mm | |
| Display Resolution | 1920*1080P |
| Exposure Adjustment | Auto mode / Manual mode |
| Weight | 450g |
| Contrast Adjustment | Manual setting |
| Operating Temperature | 0-70℃ |
Digital Video Microscope – Application Scope
Application Fields
The Integrated Video Microscope is widely used across multiple industries for microscopic inspection, quality control, research, and education. Its all‑in‑one design makes it an essential tool for production line inspection, laboratory analysis, and training. Key application areas include:
1. Electronics & Semiconductor Manufacturing
-
PCB and FPC solder joint inspection (cold solder, bridging, insufficient wetting)
-
SMD component placement accuracy verification
-
IC chip pin alignment and coplanarity inspection
-
Semiconductor wafer surface defect analysis
-
Connector and terminal block inspection
-
Wire bonding quality inspection
2. Precision Machining & Metalworking
-
Mold surface scratch and wear inspection
-
Gear tooth profile error and surface roughness evaluation
-
Cutting tool edge inspection (drills, turning tools, milling cutters, punches)
-
Precision machined part surface quality verification
-
Thread pitch, outer diameter, and flank angle measurement
3. Quality Control & Production Testing
-
Product appearance defect batch screening
-
In‑line online inspection for electronic components
-
Incoming material quality verification
-
Finished product outgoing inspection
4. Medical Device & Pharmaceutical Industry
-
Medical device surface quality inspection
-
Syringe needle shape and dimension inspection
-
Pharmaceutical packaging seal inspection
-
Hygiene monitoring in cleanroom environments
5. Scientific Research & Laboratory Analysis
-
Material microstructure observation and analysis
-
Metallographic grain size analysis
-
Coating thickness uniformity evaluation
-
Biological sample observation and documentation
6. Education & Training
-
Classroom demonstration and real‑time teaching
-
Student practical training and skill building
-
Online remote teaching and expert guidance
7. Automotive & Aerospace Parts
-
Automotive component surface defect inspection
-
Precision engineering parts dimensional verification
-
Aerospace micro‑component quality control
8. Printing, Textile & Other Industries
-
Print quality and registration mark inspection
-
Textile surface defect inspection
-
Jewelry manufacturing surface inspection
