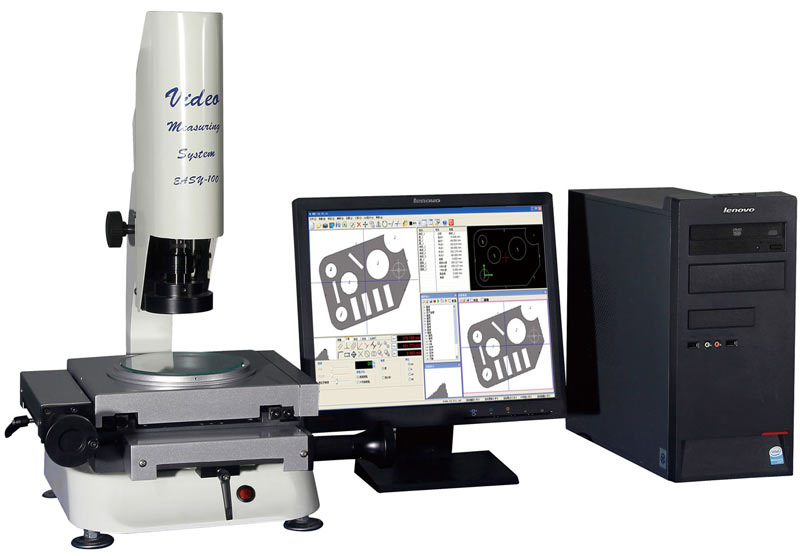

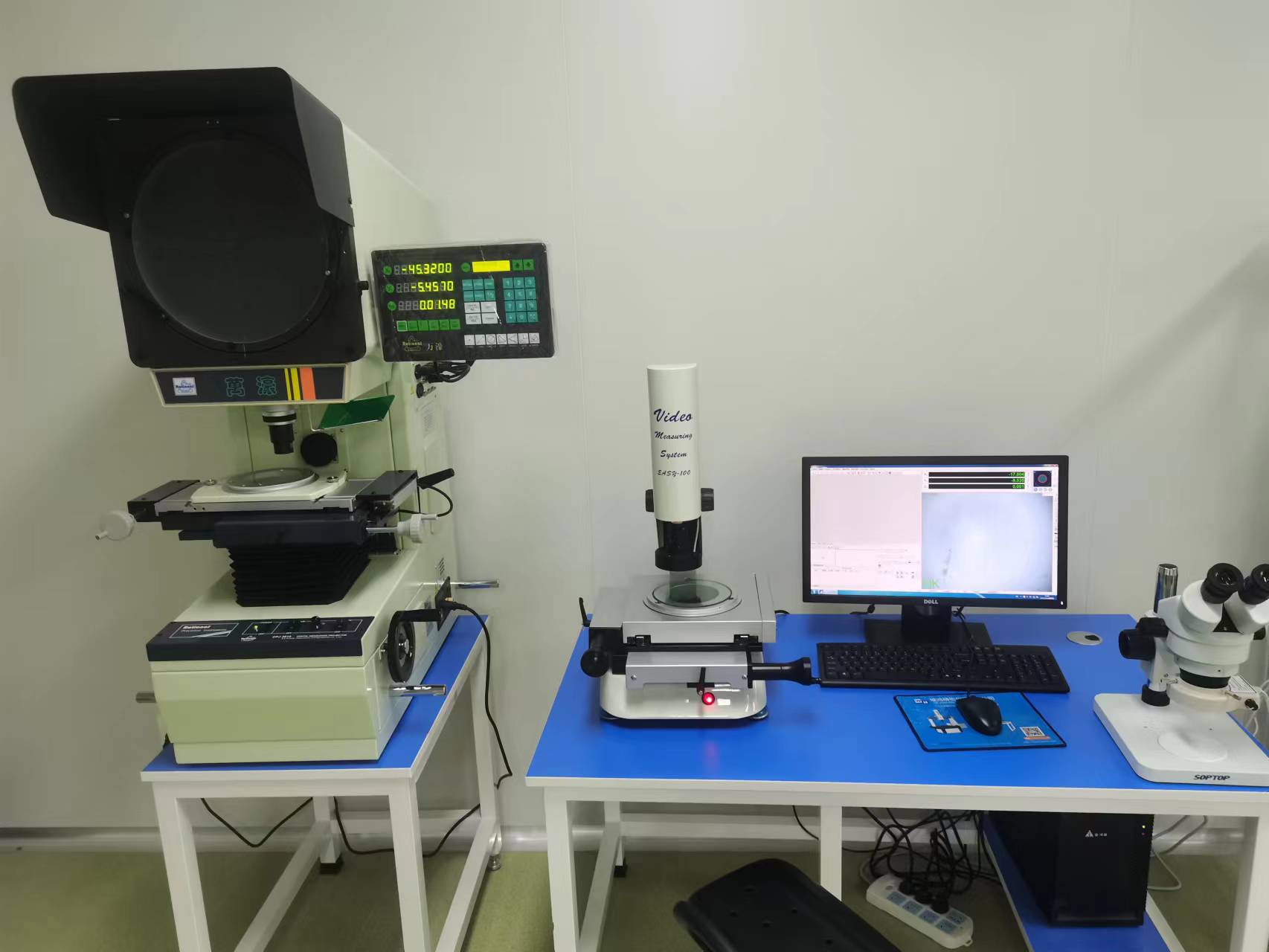

Portable Image Measuring Instrument
- Lightweight, compact, and space saving, it can completely replace traditional projectors in terms of functionality.
- Combined with VM2.5D imaging measurement software, manual or automatic point selection operation can be performed。
- Adopting high-precision guide rails and toothless screw transmission, it can achieve rapid displacement.
- Equipped with a rotating disc, it can quickly adjust the workpiece alignment.
Portable image measuring instrument Technical/Data Sheet
| Portable image measuring Machine | |
| SPECIFICATION | EASY-100 |
| mm(X,Y,Z)MEASURING TRAVEL | 100*100*80 |
| DEMO-PARTS WEIGHT | 25 |
| Z AXIS STROKE | 80mm |
| OPERATION | MANUAL |
| BASE MATERIAL | CAST ALUMINUM |
| KIND OF DRIVE | BALL SCREW &linear rail & |
| LINEAR ACCURACY | 3+L/200 μm |
| (Temperature 201)HUMIDITY ：55-65% | |
| REPEAT ACCURACY | 3μm |
| LINEAR SCALES | EUROPE IMPORTED LINEAR SCALES |
| 1μm (:0.5μm、0.1μm) | |
| IMAGING SYSTEM | EUROPE HIGH RESOLUTION COLOR SYSTEM |
| LIGHT SOURCE SYSTEM | WHITE LED LED |
| OPTICAL LENS | MANUAL CHANGE LENS |
| OPTICAL POWER | 30X ~ 180X |
| SOFTWARE | VMM2.5D MEASURING SOFTWARE VMM2.5D |
| HARDWARE | PC + LCD Color Monitor |
| (W*D*H) mm APPEARANCE | 500*500*700 |
| kg MACHINE WEIGHT | 30 |
| POWER | AC110V ~ AC220V 50/60Hz |
| TURN TABLE | Φ100mm |
| OPTION/SOFTWARE | 0.5X~10X WORK OBJECTIVE 0.5X~10X |
