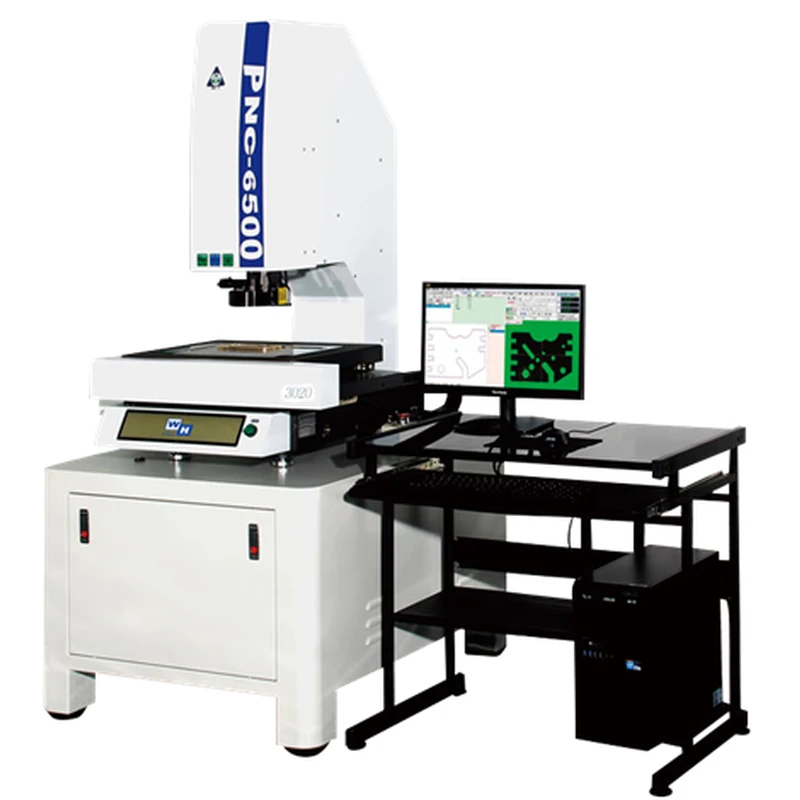

PNC Series 2D Image Measuring Instrument
Uses of PNC series 2D image measuring instrument:
The automatic 2D image measuring instrument is a new type of high-precision, high-tech precision measuring instrument that integrates optical, mechanical, electrical, and calculator imaging technologies.
Mainly applicable to precision processing industries such as electronics, molds, wire cutting, plastic injection molding, PCB boards, conductive rubber, flexible plates, wire frames, electronic component assemblies, stamping, springs, screws, cutting tools, plastics, rubber, valves, cameras, bicycle parts, and automotive and motorcycle parts.
Features of Automatic PNC series 2D image measuring instrument
- Matrix compensation ensures stable planar accuracy.
- Continuous zoom lens, greatly improving zoom convenience and accuracy.
- Precision transmission device design enables rapid movement.
- Granite structure, stable and reliable frame.
- Measurement data can be exported in formats such as Word, Excel, AutoCAD, etc.
- Illustrated report output function for easy output of test results.
- High-definition lenses and high-resolution CCDs enable high-definition product measurement.
- Supports manual and 3-axis game stick control; after workpiece programming, measurements can be automatically executed and reports exported.
- DXF files generated from CAD workpieces can be converted into CNC programming programs for automatic measurement.
- The LED light source can automatically change brightness according to CNC programming, avoiding measurement errors caused by changes in light.
- Built-in SPC can provide CPK value for reference. Measurement data can be automatically imported into customer-created tables.
- Provides geometric dimension measurement, tolerance calculation for various precision parts, graphic display, measurement data can be saved and retrieved for calculation at any time.
SPECIFICATION
| PNC- Small travel series (full automatic) image measuring Machine | ||
| SPECIFICATION | PNC-6500-3020 | PNC-6500-4030 |
| MEASURING TRAVEL mm (X,Y,Z) | 300*200*200 | 400*300*200 |
| DEMO-PARTS WEIGHT kg | 30 | 30 |
| Z AXIS STROKE mm | 200 | |
| OPERATION | Program conriol CNC | |
| BASE MATERIAL | Precision granite | |
| BODY MATERIAL | X、Y Axis precision granite | |
| KIND OF DRIVE | Ball screw &Linear Rail | |
| LINEAR ACCURACY | 2.0+L/200 μm (Temperature 20℃±1) Humidty ：55-65% | |
| REPEAT ACCURACY | 2.0μm | |
| LINEAR SCALES | Europe impoted linear scales 1μm (Optional:0.5μm、0.1μm) | |
| IMAGING SYSTEM | Europe high resolution color System | |
| LIGHT SOURCE | High brightness LED | |
| LIGHT SOURCE SYSTEM | Automatic control (16-zone surface light/contour light/coaxial light) | |
| OPTICAL LENS | Automatic change lens | |
| OPTICAL POWER | 30X ~ 180X | |
| SOFTWARE | AQ-6500 Measurment software | |
| Computer HARDWARE | PC + LCD Color Monitor | |
| APPEARANCE SIZE mm(W*D*H) | 700*800*1000 | 800*900*1000 |
| MACHINE WEIGHT kg | 600 | 800 |
| POWER | AC110V ~ AC220V Single-phase 50/60Hz | |
| OPTION/SOFTWARE | 0.5X~10X Work objective 、Rocker、 Coaxial optical components、Automatic rotating shaft、Instrument rotary table |
|
