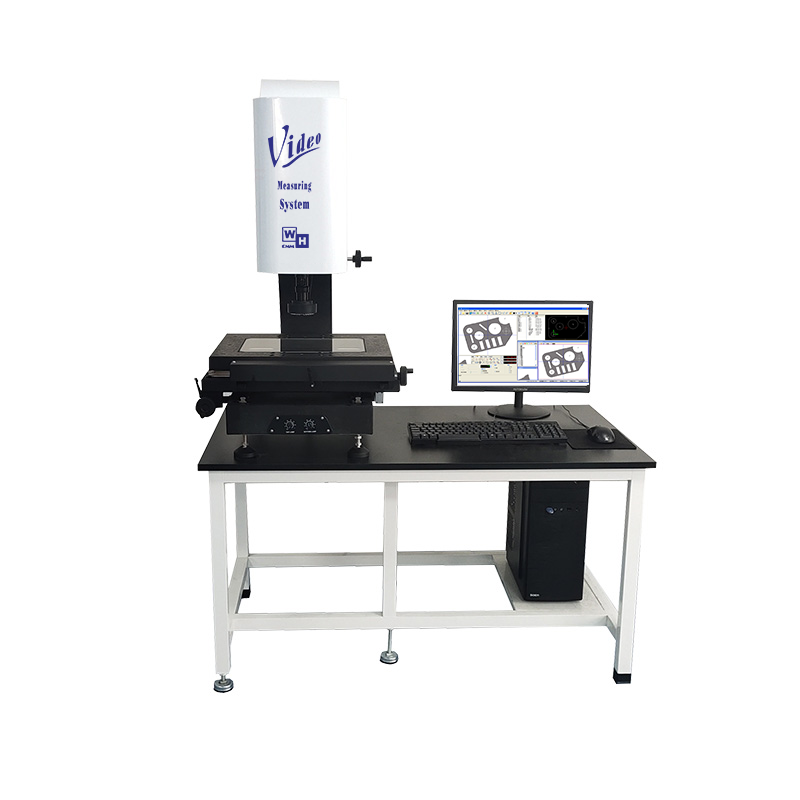

Manual 2D image measuring instrument
The manual 2D image measuring instrument is a high-precision inspection device that integrates optical, mechanical, electrical, and computer imaging technologies, and is widely applicable to dimensional measurement and tolerance control across various precision manufacturing industries.
- Uses of manual 2D image measuring instruments:
The manual 2D image measuring instrument is a new type of high-precision, high-tech precision measuring instrument that integrates optical, mechanical, electrical, and calculator imaging technologies. Mainly applicable to precision processing industries such as electronics, molds, wire cutting, plastic injection molding, PCB boards, conductive rubber, flexible plates, wire frames, electronic component assemblies, stamping, springs, screws, cutting tools, plastics, rubber, valves, cameras, bicycle parts, and automotive and motorcycle parts.
- Features of Manual 2D Image Measuring Instruments:
- Continuous zoom lens, greatly enhancing convenience and accuracy of zoom adjustment.
- Precise transmission device design enables rapid movement.
- Granite structure, stable and reliable frame.
- Measurement data can be exported in formats such as Word, Excel, AutoCAD, e
- Illustrated report output function for easy output of test results.
- High-definition lenses and high-resolution CCDs enable high-definition product measurement.
- The LED light source can automatically change brightness according to the program design, avoiding measurement errors caused by changes in light.
- Built-in SPC provides CPK value for reference. Measurement data can be automatically imported into customer-created tables.
- Provides geometric dimension measurement, tolerance calculation for various precision parts, and graphical display; measurement data can be saved and retrieved for calculation at any time.
Non-contact 2D Measuring Instrument Optical Dimension Measurement System Manual 2D Vision Measuring Machine 2D Measuring Machine (Manual) Manual Optical Image Measuring Instrument
| manual 2D image measuring Machine | ||||
| SPECIFICATION | WHV-2010-VMM | WHV-3020-VMM | WHV-4030-VMM | WHV-5040-VMM |
| MEASURING TRAVEL mm (X,Y,Z) | 200*100 | 300*200 | 400*300 | 500*400 |
| DEMO-PARTS WEIGHT kg | 30kg | 35kg | ||
| Z AXIS STROKE | 200mm（Customizable） | |||
| OPERATION | MANUAL FAST MOVING | |||
| BASE MATERIAL | Precision granite base | |||
| BODY MATERIAL | X、Y-axis precision granite worktable and column | |||
| KIND OF DRIVE | Precision-grade screw rod (quiet) & linear guide rail | |||
| LINEAR ACCURACY | 3+L/200 μm | |||
| REPEAT ACCURACY | 3μm | |||
| LINEAR SCALES | Resolution of the grating ruler is 1μm（Optional：0.5μm、0.1μm） | |||
| IMAGING SYSTEM | High-definition 1/3 inch color industrial camera | |||
| LIGHT SOURCE SYSTEM | LED parallel contour cold light source/surface cold light source (optional coaxial light source) | |||
| OPTICAL LENS | High-precision Continuous zoom lens 0.7-4.5X | |||
| OPTICAL POWER | 28X ~ 180X | |||
| SOFTWARE | Professional and precise manual measurement software | |||
| HARDWARE | PC + LCD Color Monitor | |||
| APPEARANCE SIZE (W*D*H) mm | 500*600*870 | 580*750*1000 | 700*900*1000 | 1000*1150*1600 |
| DESK SIZE （W*D*H ) mm | 1200*700*650 | 1200*700*650 | 1350*850*650 | All-in-one machine |
| MACHINE WEIGHT kg | 97 | 133 | 183 | 330 |
| POWER | AC110V ~ AC220V Single-phase 50/60Hz | |||
| OPTION/SOFTWARE | 0.5X~10X working objective lens, rotating table, Z-axis electric control, contact probe set (domestic or imported) | |||
The manual 2D image measuring instrument is widely used in precision manufacturing industries for dimensional inspection and tolerance control. Key application areas include:
The manual 2D image measuring instrument is widely used in precision manufacturing industries for dimensional inspection and tolerance control. Key application areas include:
1. Electronics & Circuitry
-
PCB (Printed Circuit Board) and FPC (Flexible Printed Circuit) measurement
-
Conductive rubber, electronic component assemblies, wire frames
-
Semiconductor packages and connectors
2. Mold & Die Making
-
Injection molds, stamping dies, and progressive dies
-
Wire-cut EDM parts and electrode inspection
3. Machining & Metalworking
-
Turned, milled, and ground precision parts
-
Cutting tools, tool holders, and fixtures
-
Stamping parts, springs, screws, and fasteners
4. Plastic & Rubber Products
-
Injection-molded plastic parts
-
Rubber seals, gaskets, and silicone components
5. Automotive & Motorcycle Components
-
Engine parts, chassis components, and transmission parts
-
Bicycle parts and motorcycle accessories
6. General Precision Parts
-
Valves, pneumatic components, and hydraulic parts
-
Camera and optical instrument components
-
Hardware and household appliance parts
7. Quality Assurance & Inspection
-
First article inspection (FAI)
-
In-process quality control (IPQC)
-
Final outgoing inspection (OQC) with illustrated reports
