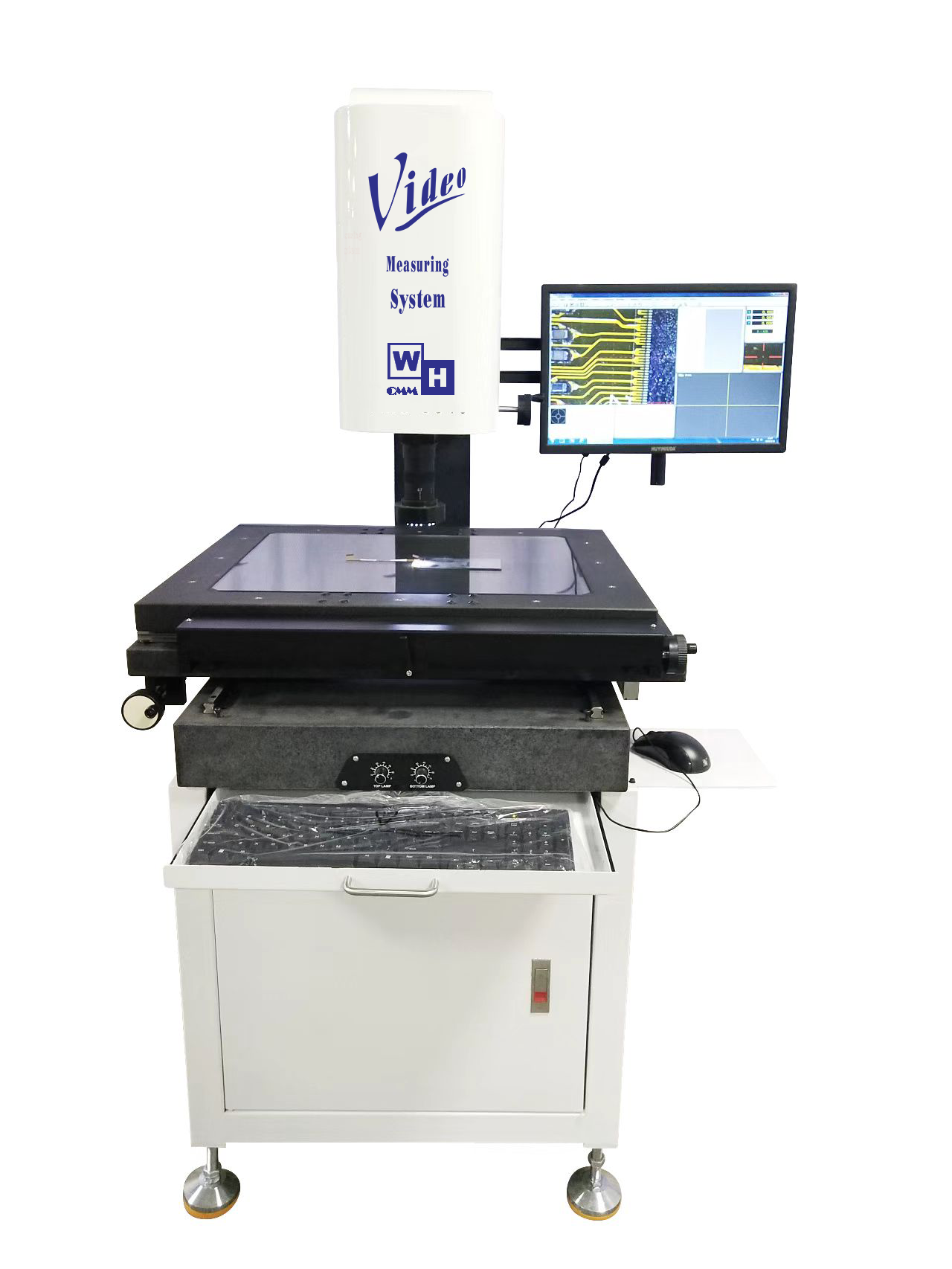

Manual 2D image measuring instrument（all-in-one）
The manual 2D image measuring instrument is a new type of high-precision, high-tech precision measuring instrument that integrates optical, mechanical, electrical, and calculator imaging technologies. Mainly applicable to precision processing industries such as electronics, molds, wire cutting, plastic injection molding, PCB boards, conductive rubber, flexible plates, wire frames, electronic component assemblies, stamping, springs, screws, cutting tools, plastics, rubber, valves, cameras, bicycle parts, and automotive and motorcycle parts.
Features of Manual 2D Image Measuring Instruments:
- Continuous zoom lens, greatly enhancing convenience and accuracy of zoom adjustment.
- Precise transmission device design enables rapid movement.
- Granite structure, stable and reliable frame.
- Measurement data can be exported in formats such as Word, Excel, AutoCAD, e
- Illustrated report output function for easy output of test results.
- High-definition lenses and high-resolution CCDs enable high-definition product measurement.
- The LED light source can automatically change brightness according to the program design, avoiding measurement errors caused by changes in light.
- Built-in SPC provides CPK value for reference. Measurement data can be automatically imported into customer-created tables.
- Provides geometric dimension measurement, tolerance calculation for various precision parts, and graphical display; measurement data can be saved and retrieved for calculation at any time.
技术参数
| manual 2D image measuring Machine | ||||
| SPECIFICATION | WHV-2010-VMM | WHV-3020-VMM | WHV-4030-VMM | WHV-5040-VMM |
| MEASURING TRAVEL mm (X,Y,Z) | 200*100 | 300*200 | 400*300 | 500*400 |
| DEMO-PARTS WEIGHT kg | 30kg | 35kg | ||
| Z AXIS STROKE | 200mm（Customizable） | |||
| OPERATION | MANUAL FAST MOVING | |||
| BASE MATERIAL | Precision granite base | |||
| BODY MATERIAL | X、Y-axis precision granite worktable and column | |||
| KIND OF DRIVE | Precision-grade screw rod (quiet) & linear guide rail | |||
| LINEAR ACCURACY | 3+L/200 μm | |||
| REPEAT ACCURACY | 3μm | |||
| LINEAR SCALES | Resolution of the grating ruler is 1μm（Optional：0.5μm、0.1μm） | |||
| IMAGING SYSTEM | High-definition 1/3 inch color industrial camera | |||
| LIGHT SOURCE SYSTEM | LED parallel contour cold light source/surface cold light source (optional coaxial light source) | |||
| OPTICAL LENS | High-precision Continuous zoom lens 0.7-4.5X | |||
| OPTICAL POWER | 28X ~ 180X | |||
| SOFTWARE | Professional and precise manual measurement software | |||
| HARDWARE | PC + LCD Color Monitor | |||
| APPEARANCE SIZE (W*D*H) mm | 500*600*870 | 580*750*1000 | 700*900*1000 | 1000*1150*1600 |
| DESK SIZE （W*D*H ) mm | 1200*700*650 | 1200*700*650 | 1350*850*650 | All-in-one machine |
| MACHINE WEIGHT kg | 97 | 133 | 183 | 330 |
| POWER | AC110V ~ AC220V Single-phase 50/60Hz | |||
| OPTION/SOFTWARE | 0.5X~10X working objective lens, rotating table, Z-axis electric control, contact probe set (domestic or imported) | |||
