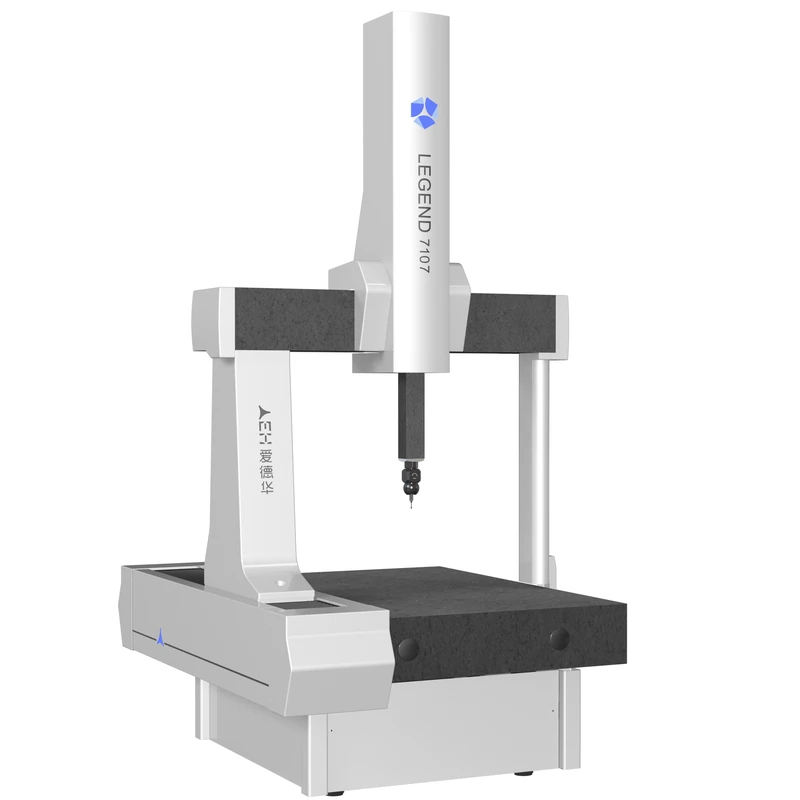

Legend Series Coordinate Measuring Machine
The Legend high-precision measuring machine series is developed with the objective of advancing the self-sufficiency of high-end measurement equipment.
Through comprehensive optimization of mechanical structure, motion control systems, and measurement software, and featuring patented innovations including a precision “L”-shaped beam and all-granite guideways, the Legend series guarantees exceptional measurement stability and accuracy. It is ideally suited to address the rigorous high-precision inspection demands of complex components across the aviation, aerospace, defense, and automotive industries.
Main Features
- The patented L-shaped beam achieves an optimal air-bearing layout and excellent thermal stability.
- The upper-and-lower clamping air-bearing arrangement on the auxiliary side of the bridge structure enhances machine accuracy stability under air pressure fluctuations (patented).
- The heavy-duty high-rigidity granite worktable, reflecting German-style machine design, provides exceptional structural rigidity, further improving machine accuracy and stability under air pressure variations.
- The unique 3+2 support system minimizes worktable deformation to a nearly negligible level, ensuring high machine accuracy.
- Multi-level safety protection integrates mechanical, electrical, and human-machine interface safeguards with three-tier protection, significantly enhancing equipment operational safety.
Legend Series Coordinate Measuring Machine
| Legend Series Coordinate Measuring Machine | |||||
| SPECIFICATION | Legend 7107 | Legend 10158 | Legend 10258 | Legend 121510 | Legend 152012 |
| MEASURING TRAVEI (X,Y,Z) mm | 700*1000*700 | 1000*1500*800 | 1000*2500*800 | 1200*1500*1000 | 1500*2000*1200 |
| STRUCTURE | Fixed gantry structure | ||||
| OPERAYION | CNC Progammable | ||||
| BASE MATERIAL | Prcision Grnite | ||||
| BODY MATERIAL | X、Y、Zaxis Precision Granite | ||||
| IND OF DRIVE | Sanyo Servo Motors+Joystick Sanyo | ||||
| INDICATION ERROR | 1.3+3L/1000 μm | 1.7+3L/1000 μm | 1.7+3L/1000 μm | 2.1+3L/1000 μm | 2.8+3L/1000 μm |
| DETECTION ERROR | 1.3μm | 1.7μm | 1.7μm | 2.1μm | 2.8μm |
| LINEAR SCALES | Heidenhand Precision Grating System | ||||
| TRIGGER PROBE | RENISHAW SP80 Scanning Probe | ||||
| CONTROL SYSTEM | UK RENISHAW UCC control system and German MORA DCC. | ||||
| SOFTWARE SYSTEM | AC-DMIS/NET-DMIS Measurement Software | ||||
| APPEARANCE SIZE (W*D*H) | 1530*2020*3040 | 1980*2680*3325 | 1980*3680*3325 | 2180*2680*3725 | 2480*3180*4125 |
| MACHINE WEIGHT kg | 2000 | 3800 | 5980 | 4350 | 5530 |
| POWER | AC110V ~ AC220V Single-phase 50/60Hz | ||||
| OPTION | Imaging System | ||||
