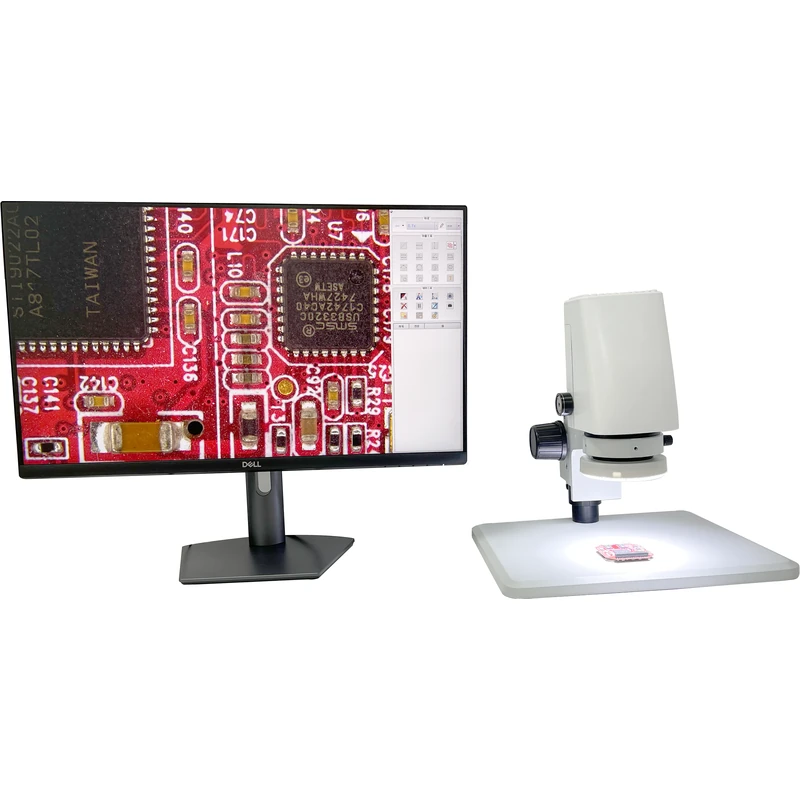

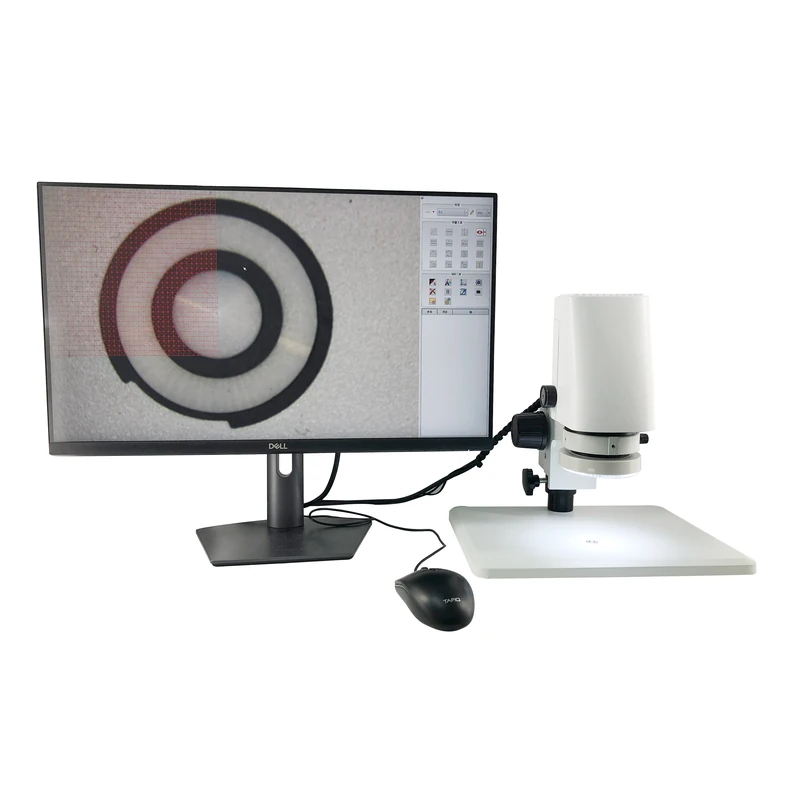

High-Definition Video Microscope WH-8026
The High-definition electron microscope WH-8026 3D electron microscope enables 360° observation of inspected objects, delivering bright and clear images with smooth, lag-free video.
The device employs a high-speed 2-megapixel HDMI camera for real-time image transmission, and incorporates independently developed image processing algorithms for exceptionally clear viewing. The WH-8026 microscope features an adjustable magnification lens with optical magnification continuously adjustable from 0.7× to 4.5×, achieving up to 200× magnification when combined with a monitor. The microscope lens can be switched between flat (2D) mode and 3D mode. In flat mode, it can measure product dimensions and area. In 3D mode, it provides 360° viewing of the side profiles of products. It is ideally suited for inspecting printed circuit boards, hardware components, plastic products, and miniature precision parts on production lines.
Product Name：High-definition electron microscope
Product Model：WH-8026
Product Features
- Precision optical design utilizing high-quality optical components, offering low distortion, high resolution, and large depth of field.
- Manual switching of observation angles between 90° and 45°, with 3D mirror-effect imaging for observing three-dimensional components.
- Provides 360° rotational observation with a working distance of up to 95 mm.
- Integrated high-brightness LED light source with adjustable brightness.
- Large depth of field – no height adjustment needed within the working focal range.
- Adjustable optical magnification from 0.7× to 4.5×, delivering a total magnification of 20× to 150×.
- Integrated all-in-one design with centralized power supply, tidy appearance, and easy installation.
- Simple operation – one-touch setup with automatic exposure and automatic white balance.
- HDR wide dynamic range suppresses strong light and prevents reflection.
- Built-in measurement software with up to 40 measurement tools, capable of measuring length, perimeter, area, angle, radian, etc.
- Software-based automatic edge detection for capturing boundaries and improving measurement accuracy.
- Graphic overlay and dimension comparison functions to assist with product inspection.
- Crosshair lines, crosshair scale lines, and up to 64 horizontal/vertical reference lines – movable and editable.
- Image saving and measurement data export.
- Image freeze function for easy measurement of dynamic objects.
High-Definition Video Microscope WH-8026
| Product Model | WH-8026 |
| Chip Architecture | FPGA+ARM |
| Operating System | LINUX 3.10 |
| Core Architecture | Core Architecture Cortex-A9 |
| Main frequency speed | 1Ghz |
| Optical dimensions | 1/2 |
| Resolution | 1920×1080 |
| Frame Rate | 60fps |
| measurement function | Between two points, point to line, three-point circle, center to center distance, concentric circle, point to circle, line to circle, parallel line, rectangle, angle, radian, polygon |
| Data Saving | Save measurement result images or Excel data with mouse operation |
| Measurement method | Intelligent point selection/manual point selection |
| Interfaces | 2 USB ports, capable of connecting USB flash drives, wireless mice or keyboards |
| Operating Voltage | 12v |
| Operating Temperature | -10℃-70℃ |
| Overall dimensions | 260mm*320mm*350mm |
| Weigh | 2kg |
| Magnification | 20-150x |
| Field of View | 1mm-25mm/3mm-40mm |
| Working Distance | 60mm-180mm |
