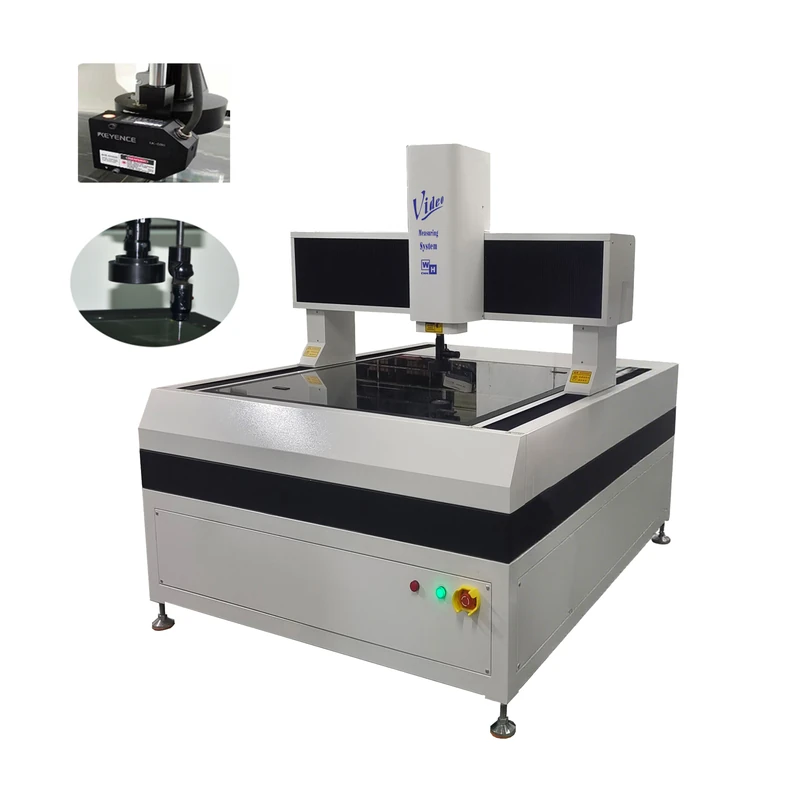

Gantry-Type Fully Automatic 2.5D Image Measuring Instrument
Purpose of gantry type automatic anime image measuring instrument:
The gantry style automatic 2.5-dimensional image measuring instrument is a new type of high-precision, high-tech precision measuring instrument that integrates optical, mechanical, electrical, and calculator image technology.
Mainly suitable for precision processing industries such as electronics, molds, wire cutting, plastic injection, PCB boards, conductive rubber, flexible boards, wire racks, electronic component groups, stamping, springs, screws, cutting tools, plastics, rubber, valves, cameras, bicycle parts, and automotive parts.
Features of the gantry-type automatic 2.5D image vision measuring instrument
- Matrix compensation ensures stable plane accuracy.
- Continuous zoom lens greatly improves zoom convenience and accuracy.
- Precise transmission device design to achieve rapid movement.
- Granite structure, stable and reliable frame.
- Measurement data can be exported in formats such as Word, Excel, AutoCAD, etc.
- The report output function with both graphics and text makes it easy to output detection results.
- High-definition lens and high-resolution CCD to achieve high-definition measurement of products.
- Provide manual and 3-axis joystick control, and automatically perform measurements and export reports after workpiece programming.
- The DXF file generated by the workpiece CAD can be converted into a CNC programming program for automatic measurement.
- LED light sources can automatically change brightness according to CNC programming, avoiding measurement errors caused by changes in light.
- Comes with SPC to provide CPK values for reference. Measurement data can be automatically imported into customer made tables.
- Provide geometric dimension measurement and tolerance calculation for various precision parts, display graphics, and save measurement data for calculation at any time.
Gantry-Type Fully Automatic 2.5D Image Measuring Instrument
| Gantry-type fully automatic 2.5D image measuring instrument | |||||
| SPECIFICATION | WHV-6050-CNC | WHV-8060-CNC | WHV-1210-CNC | WHV-1512-CNC | WHV-2815-CNC |
| MEASURING TRAVEL mm (X,Y,Z) | 600*500 | 800*600 | 1200*1000 | 1200*1500 | 1500*2800 |
| DEMO-PARTS WEIGHT kg | 45kg | ||||
| Z AXIS STROKE mm | BRIDGE TYPE 200mm （Customizable 300/400） | ||||
| OPERATION | Automatic | ||||
| BASE MATERIAL | Precision granite base | ||||
| BODY MATERIAL | Granite base,column,workbench | ||||
| KIND OF DRIVE | High-precision bal screw & high -precision linear guide rail | ||||
| LINEAR ACCURACY | 3+L/200 μm | 3+L/200 μm | 3+L/200μm | 3+L/200 μm | 3+L/150 μm |
| REPEAT ACCURACY | 3μm | ||||
| LINEAR SCALES | Resolution of the grating scale is 1μm （optional：0.5μm、0.1μm） | ||||
| IMAGING SYSTEM | High-resolution color digital camera | ||||
| LIGHT SOURCE SYSTEM | High-Brightness LED Programmable Zoned Light Source (8-zone surface light/contour light/coaxial light) | ||||
| OPTICAL LENS | High-precision zoom lens 0.7-4.5X | ||||
| OPTICAL POWER | 25X ~ 225X | ||||
| SOFTWARE | Deddicated genuine measurement software | ||||
| HARDWARE | PC + 24″LCD Color Monitor | ||||
| APPEARANCE DIMENSIONS mm(W*D*H) | 1400*1100*1700 | 1200*1600*1700 | 1600*2000*1700 | 1400*1800*1700 | 2100*3600*1700 |
| MACHINE WEIGHT kg | 800 | 1000 | 2000 | 2500 | 3500 |
| POWER | AC110V ~ AC220V Single-phase 50/60Hz | ||||
| OPTION/SOFTWARE | 0.5X~10X working objective lenses, contact probe set (domestic or imported), high-precision laser tester ，coaxial light |
||||
