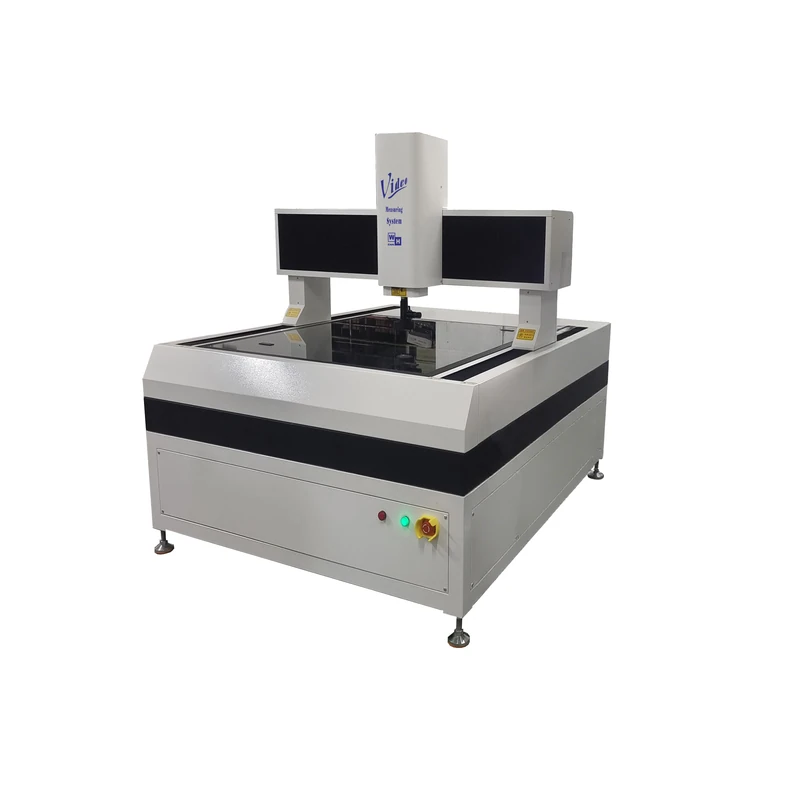

Gantry-Style Fully Automatic 2D Image Measuring Instrument
Applications of the gantry-type automatic2D image measuring instrument:
The gantry-type automatic 2D image measuring instrument is a new type of high-precision, high-tech precision measuring instrument that integrates optical, mechanical, electrical, and calculator imaging technologies.
Mainly applicable to precision processing industries such as electronics, molds, wire cutting, plastic injection molding, PCB boards, conductive rubber, flexible plates, wire frames, electronic component assemblies, stamping, springs, screws, cutting tools, plastics, rubber, valves, cameras, bicycle parts, and automotive and motorcycle parts.
Features of the Gantry-Type Automatic 2D image Measuring Instrumen
- Matrix compensation ensures stable planar accuracy.
- Continuous zoom lens, greatly improving zoom convenience and accuracy.
- Precision transmission device design enables rapid movement.
- Granite structure, stable and reliable frame.
- Measurement data can be exported in formats such as Word, Excel, AutoCAD, etc.
- Illustrated report output function for easy output of test results.
- High-definition lenses and high-resolution CCDs enable high-definition product measurement.
- Supports manual and 3-axis game stick control; after workpiece programming, measurements can be automatically executed and reports exported.
- DXF files generated from CAD workpieces can be converted into CNC programming programs for automatic measurement.
- The LED light source can automatically change brightness according to CNC programming, avoiding measurement errors caused by changes in light.
- Built-in SPC provides CPK value for reference. Measurement data can be automatically imported into customer-created tables.
- Provides geometric dimension measurement, tolerance calculation for various precision parts, graphical display, measurement data can be saved and retrieved for calculation at any time.
SPECIFICATION
| AUTO-Longmen Large travel series (fully automatic) image measuring Machine（Customizable models) | |||||
| SPECIFICATION | WHV-6050-CNC | WHV-8060-CNC | WHV-1210-CNC | WHV-1512-CNC | WHV-2815-CNC |
| MEASURING TRAVEL mm (X,Y,Z) | 600*500 | 800*600 | 1200*1000 | 1200*1500 | 1500*2800 |
| DEMO-PARTS WEIGHT kg | 45kg | ||||
| Z AXIS STROKE mm | Bridge type 200mm （Customizable 300/400） | ||||
| OPERATION | Automatic | ||||
| BASE MATERIAL | Precision granite base | ||||
| BODY MATERIAL | Granite base,column,workbench | ||||
| KIND OF DRIVE | High-precision bal screw & high -precision linear guide rail | ||||
| LINEAR ACCURACY | 3+L/200 μm | 3+L/200 μm | 3+L/200 μm | 3+L/200 μm | 3+L/150 μm |
| REPEAT ACCURACY | 3μm | ||||
| LINEAR SCALES | Resolution of the grating scale is 1μm （optional：0.5μm、0.1μm） | ||||
| IMAGING SYSTEM | High-resolution color digital camera | ||||
| LIGHT SOURCE SYSTEM | High-Brightness LED Programmable Zoned Light Source (8-zone surface light/contour light/coaxial light) | ||||
| OPTICAL LENS | High-precision zoom lens 0.7-4.5X | ||||
| OPTICAL POWER | 25X ~ 225X | ||||
| SOFTWARE | Deddicated genuine measurement software | ||||
| COMPUTER HARDWARE | PC + 24″LCD Color Monitor | ||||
| APPEARANCE SIZE mm(W*D*H) | 1400*1100*1700 | 1200*1600*1700 | 1600*2000*1700 | 1400*1800*1700 | 2100*3600*1700 |
| MACHINE WEIGHT kg | 800 | 1000 | 2000 | 2500 | 3500 |
| POWER | AC110V ~ AC220V Single-phase 50/60Hz | ||||
| OPTION/SOFTWARE | 0.5X~10X working objective lenses, contact probe sets (domestic or imported), high-precision laser testers |
||||
